Unless otherwise specified, all the following operations are performed in a 32-bit environment

Examples of subclasses used in this chapter:

class Animal
{
public:
    Animal() {};
    virtual void eat() { cout << "Animal::eat()" << endl; };
    virtual void bark() { cout << "bark()" << endl; };
    virtual ~Animal() {};
    void growUp() { age += 1; }

protected:
    int age = 10;
};

class Dog : public Animal
{
public:
    Dog() { age = 20; }
    void wag() {};
    virtual void eat() {
        cout << "Dog::eat()" << " tail=" << tail << "cm" << endl;
    };

private:
    int tail = 90;
};

working principle

First, verify that any class will be larger as long as it has a virtual function

Animal* a = new Animal;
int* p = (int*)a;

cout << sizeof(*a) << endl;

cout << *p << endl;
p += 1;
cout << *p << endl;

The output result is

8
14588724
10

It can be seen that the object size referred to by a is 8 bytes, and directly accessing a as int * does not get the member variable i. after p + + (the address here is actually increased by 4), p points to the member variable i

At this time, a refers to the following objects:

i

age

Size is int

Size is int Viewer does not support full SVG 1.1

The above is actually the virtual function table pointer vptr, and the following is the member variable i

vptr points to the virtual function table (Vtable), which stores pointers to all virtual functions in the class, that is, each class has only one virtual function table. You can verify this

Animal a, b;
cout << *(int*)(&a) << endl;// Print out the address pointed to by vptr
cout << *(int*)(&b) << endl;

Output results:

4295476
4295476

The vptr of the two objects points to the same virtual function table

Take the Animal class at the beginning of this article as an example. If an object of Animal class is instantiated, the organization form of the object in memory is:

A AnimalvptrageAnimal VtableAnimal::dtor()Animal::bark()Animal::eat()

Any Animal object will have a virtual function pointer to Animal Vtable

The objects of the derived Dog class are as follows:

A DogvptragetailDog VtableDog::dtor()Animal::bark()Dog::eat()

This object also has a vptr, but it points not to the virtual function table of the Animal class, but to its own class

It should be noted that the structure of the virtual function table of the derived class is consistent with that of the base class, in which the destructor and eat() are their own, and bark() follows Animal's (the destructor compiler automatically makes one) If a virtual function is added to a derived class, it will be added to the virtual function table

If you do something evil

Point an Animal pointer to a Dog object and call the eat() function through the pointer to call Dog::eat()

Animal a;
Dog b;
Animal* p = &b;
p->eat();

The output is as follows:

Dog::eat() tail=30cm

This is a general usage The object does not change, just let a pointer to the base class point to the object of the derived class

What happens if you assign an object of a derived class to an object of a base class?

Animal a;
Dog b;
a = b;
a.eat();

The output is as follows:

Animal::eat()

This is called sliced off. Only the part inherited from the base class will be copied to a, and the rest will be "cut off"

Only calls through pointers or references can be dynamically bound. Here, of course, a=b; After that, even if it is called through the pointer to a, it will not be dynamically bound. This is because the virtual function table pointer vptr will not be assigned to a during the assignment operation of the object. What a calls is still a function in the Animal class

Can you do something evil? What happens if you manually assign vptr of b to a?

Never do this in actual code! This is just to study the principle of virtual function implementation

// Different compilers may be different. Here is the 32 - bit environment of cl compiler If you need to view under 64 bit, you should change 1 to 2 and 2 to 4
//I need to change * (p+1) to * (p+2) when compiling under g + +, and the original * (p+2) to * (p+3) I won't study it for the time being
//If the expected results cannot be obtained, set the protected and private of Animal and Dog to public, and adjust the offset according to their addresses
Animal a;
Dog b;
Animal* pa = &a;

pa->eat();//Call Animal::eat(), which is normal usage

//cout << &b.age << " " << &b.tail << endl;

int* p = (int*)&a;
int* q = (int*)&b;

cout << "a vtable Address of" << *p << endl;
cout << "age " << *(p + 1) << endl;
cout << "b vtable Address of" << *q << endl;
cout << "age " << *(q + 1) << endl;
cout << "tail " << *(q +2) << endl;

*p = *q;//Assign only Dog's vptr to a

cout << "a vtable Address of" << *p << endl;//It can be observed that the vtable address of a is consistent with that of b
cout << "age " << *(p + 1) << endl;//Nothing else has changed
cout << "b vtable Address of" << *q << endl;
cout << "age " << *(q + 1) << endl;
cout << "tail " << *(q + 2) << endl;

pa->eat();//Call Dog::eat()

Output results:

Animal::eat()
a vtable Address 12229428
age 10
b vtable Address 12229464
age 20
tail 90
a vtable Address 12229464
age 10
b vtable Address 12229464
age 20
tail 90
Dog::eat() tail=-858993460cm

After the vptr is manually assigned, the vptr of a no longer points to the virtual function table of Animal, but to the virtual function table of Dog. Therefore, Dog::eat() will be called when eat() is called At the same time, you can see that a strange value is printed at last, because a member variable tail is added in the Dog class (you can see that although tail is private, there is no way to access or even modify it), which does not exist in the base class Animal Therefore, Dog::eat() will print the memory under a.age as a.tail

Virtual destructors

As for the destructor, if there is a virtual function in the class, the destructor of the class must also be set to virtual, otherwise there will be trouble, because if it is not virtual, the static binding occurs during the destructor, and the destructor of the derived class will be lost

Overriding

In C + +, overriding redefines the function body of the virtual function. After overriding, if you want to call the virtual function with the same name in the base class, you need to use base:: function(); Such grammar

Conditions constituting overriding:

The function names are consistent

Function parameters are consistent

The return value of the function is consistent (it is also possible if the return type has a covariant relationship, as shown in the following code)

class Expr{
public:
    virtual Expr* newExpr();
    virtual Expr& clone();
    virtual Expr self();
};

class BinaryExpr : public Expr{
public:
    virtual BinaryExpr* newExpr();	//OK
    virtual BinaryExpr& clone();	//OK
    virtual BinaryExpr self();		//ERROR
};

Overloading and virtual functions

Overloading adds multiple signatures

class Base {
public:
    virtual void func();
    virtual void func(int);
};

If you override the overloaded function in the base class, you must ensure that all overloads are overridden

• If only a part is overridden, name hiding will occur for functions with the same name in other base classes

An attempt to call virtual function through a function pointer

Now that you can get the address of the virtual function table, you naturally want to try to call it by function pointer, but it's not as simple as you think. The following content comes from my attempt. Thank you czg for your help

Configuration information of test platform: System: Windows 10 Compiler: cl (x86)/g++ (x64) If you compile under 64 bit, you need to change all 1 to 2 and 2 to 4

typedef void(*Fun)();
Animal* a = new Animal();

int* p = (int*)a;//*p is a pointer to the virtual function table
int* q = (int*)*p;//The value of Q is the same as * p, pointing to the first item of the virtual function table, * q is the function pointer

//Calling Animal::eat() is equivalent to ((void(*)())(*(int*)*(int*)a))();
((Fun)*q)();

//Calling bark() is equivalent to ((void(*)())*((int*)*(int*)a+1))();
((Fun)*(q+1))();

Output results:

Animal::eat()
bark()

The function is successfully called through the function pointer. Next, try to verify the dynamic binding so that the pointer a points to an object of Dog type:

typedef void(*Fun)();
Animal* a = new Dog();

int* p = (int*)a;//*p is a pointer to the virtual function table
int* q = (int*)*p;//The value of Q is the same as * p, pointing to the first item of the virtual function table, * q is the function pointer

//Calling Dog::eat() is equivalent to ((void(*)())(*(int*)*(int*)a))();
((Fun)*q)();

//Calling bark() is equivalent to ((void(*)())*((int*)*(int*)a+1))();
((Fun)*(q+1))();

Output results:

Dog::eat() tail=-1779892224cm
bark()

Dog::eat() was called successfully, but Dog::eat() failed to get the value of the member variable tail

How can I bind virtual functions to concrete objects? The natural idea is to declare the function pointer Fun as typedef void(*Fun)(Animal *);, Then pass the "this pointer" (actually a pointer to an object) to the function by passing a reference to expect the function to use this parameter like the this pointer

Then the problem arises:

typedef void(*Fun)(Animal*);
Animal* a = new Dog();

int* p = (int*)a;//*p is a pointer to the virtual function table
int* q = (int*)*p;//The value of Q is the same as * p, pointing to the first item of the virtual function table, * q is the function pointer

((void(*)(Animal*))(*(int*)*(int*)a))(a);   //OK

((Fun)(*(int*)*(int*)a))(a);                //OK

((Fun)(*(int*)*p))(a);                      //OK

((Fun)(*q))(a);                             //The value of tail is incorrect

Output result (screenshot):

However, the value of * (int*)*p) is exactly the same as * q. what's the problem?

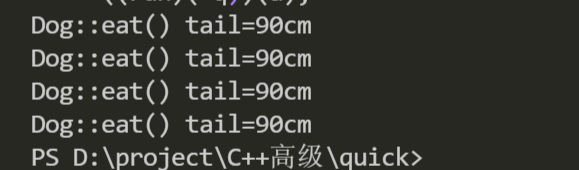

Switch to the g + + compiler and try again:

Although the compiler gives a lot of warning, this is indeed the expected result With the help of czg students, I checked the assembly code and the Microsoft Argument Passing and Naming Conventions document

Argument Passing and Naming Conventions

https://docs.microsoft.com/en-us/cpp/cpp/argument-passing-and-naming-conventions?view=msvc-160

The following calling conventions are supported by the Visual C/C++ compiler.

When a member function is called __thiscall , the this pointer is stored in the ECX register through parameter transfer __cdecl The parameter is pushed into the stack. Therefore, the problem here is that the member function Dog::eat() wants to get the this pointer from the ECX register, but this is not there, so the obtained tail value is wrong

As for why the first few seem to work normally, it is because the value of a is just move d into the ECX register during function execution

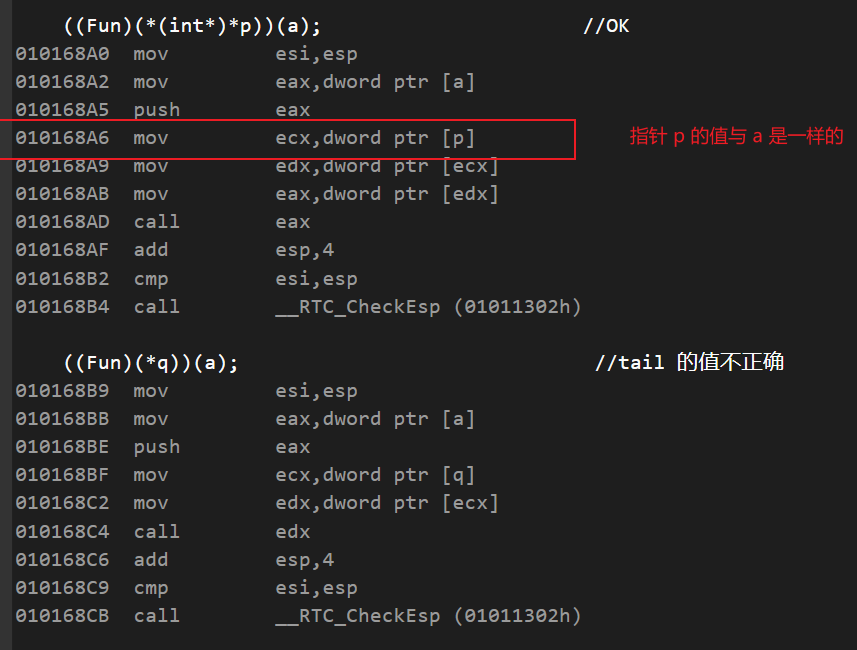

You can take a look at the corresponding assembly code

This situation can be repeated under Visual Studio x86 compilation, but it has not occurred in g + + compilation This matter is related to different platforms and compilers, so you only need to understand the principle of virtual function polymorphism, and you don't have to implement it in code
