Python Metamorphosis-2017-4-23
Posted by Warz on Sat, 06 Jul 2019 22:43:36 +0200
My first blog, this is a water test exercise. The dish served this time is Haporxy configuration file operation.
<1> Upper demand:
The specific configuration files are as follows:
1 global
2 log 127.0.0.1 local2
3 daemon
4 maxconn 256
5 log 127.0.0.1 local2 info
6 defaults
7 log global
8 mode http
9 timeout connect 5000ms
10 timeout client 50000ms
11 timeout server 50000ms
12 option dontlognull
13
14 listen stats :8888
15 stats enable
16 stats uri /admin
17 stats auth admin:1234
18
19 frontend oldboy.org
20 bind 0.0.0.0:80
21 option httplog
22 option httpclose
23 option forwardfor
24 log global
25 acl www hdr_reg(host) -i www.oldboy.org
26 use_backend www.oldboy.org if www
27
28 backend www.oldboy.org
29 server 100.1.7.9 weight 20 maxconn 3000
< 2 > Analytical needs:
1. Display the main information in the configuration file, which is the data after "backend".
2. The operation of adding, deleting and modifying data.
3. Make backup after each operation.
< 3 > Functional analysis:
1. Read configuration files and intercept useful data for printing.
2. It has the function of adding, deleting, modifying and checking, where there is user input, so it is necessary to make a judgment to prevent the program from crashing due to incorrect input.
3. Stitching the data after operation with the original irrelevant data and writing it into the configuration file

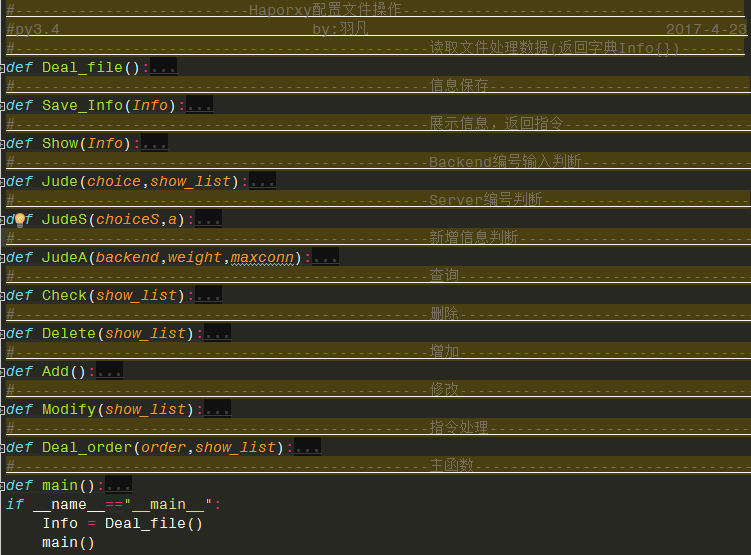

<4> Complete code:
1 #--------------------------Haporxy Configuration file operation--------------------------------------
2 #py3.4 by:Yu Fan 2017-4-23
3 #----------------------------------------------Read files to process data(Return to the dictionary Info{})-------
4 def Deal_file():
5 s = ""
6 Info = {}
7 with open("configuration file.txt","r") as f:
8 for i in f:
9 if i.startswith("backend"):
10 backend = i.strip().split(" ")[1]
11 Info[backend] = []
12 elif i.strip().startswith("server"):
13 server = i.strip().split(" ")[1]
14 weight = i.strip().split(" ")[3]
15 maxconn = i.strip().split(" ")[5]
16 Server = {"server":server,"weight":weight,"maxconn":maxconn}
17 Info[backend].append(Server)
18 else:
19 continue
20 return Info
21 #----------------------------------------------Information Preservation-----------------------------
22 def Save_Info(Info):
23 s = ""
24 with open("configuration file.txt","r") as f:
25 for i in f:
26 if not i.startswith("backend"):
27 s = s + i
28 else:
29 break
30 s1 = ""
31 for backend in Info:
32 s2 = "backend " + backend
33 s1 = s1 + s2 + "\n"
34 for di in Info[backend]:
35 server = di["server"]
36 weight = di["weight"]
37 maxconn = di["maxconn"]
38 s3 = " server {} weight {} maxconn {}".format(server,weight,maxconn)
39 s1 = s1 + s3 + "\n"
40 S = s + s1
41 with open("configuration file.txt","w+") as F:
42 F.write(S)
43 return(S)
44 #----------------------------------------------Display information, return instructions---------------------
45 def Show(Info):
46 show_list = []
47 print("--------------------""\033[1;31;0m""HaProxy Configuration file management""\033[0m""-------------------------------")
48 for i,n in enumerate(Info):
49 show_list.append(n)
50 print("\033[1;32;0m",i+1,n,"\033[0m")
51 print("------------------------------------------------------------------------")
52 order = input("Please enter instructions( A)New construction,.( D)Delete,( M)Amendment( C)Queries,( Q)Sign out:")
53 while order not in ("A","D","M","C","Q"):
54 order = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
55 show_list = list(show_list)
56 return order,show_list
57 #----------------------------------------------Backend Number Input Judgment-------------------
58 def Jude(choice,show_list):
59 try:
60 if eval(choice) not in range(len(show_list)+1):
61 return True
62 else:return False
63 except:
64 return True
65 #----------------------------------------------Server Number Judgment-----------------------
66 def JudeS(choiceS,a):
67 try:
68 if int(choiceS) in range(1,a+1) or int(choiceS) == 1:
69 return False
70 else:
71 return True
72 except:
73 return True
74 #----------------------------------------------Additional Information Judgment--------------------------
75 def JudeA(backend,weight,maxconn):
76 try:
77 if backend.startswith("www") and int(weight) in range(50) and int(maxconn) in range(5000):
78 return False
79 except:
80 return True
81 #----------------------------------------------query---------------------------------
82 def Check(show_list):
83 choice = input("Please choose backend: ")
84 while Jude(choice,show_list):
85 choice = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
86 choice = int(choice)
87 print("------------------------------",show_list[choice-1],"------------------------------")
88 for a,b in enumerate(Info[show_list[choice-1]]):
89 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
90 print("----------------------------------------------------------------------------")
91 select = input("Please enter instructions( Q)Withdrawal,( B)Return:")
92 while select not in ("Q","B"):
93 select = input("\033[1;31;0m""Please enter the correct instruction:""\033[0m")
94 if select == "Q":
95 pass
96 elif select == "B":
97 main()
98 #----------------------------------------------delete---------------------------------
99 def Delete(show_list):
100 choice = input("delete Backend(B) or Server(S)？: ")
101 while(choice not in ("B","S")):
102 choice = input("\033[1;31;0m""Please enter the correct instruction:""\033[0m")
103 selection = input("Please choose Backend No.")
104 while Jude(selection,show_list):
105 selection = input("\033[1;31;0m""Please enter the correct number:""\033[0m")
106 selection = int(selection)
107 if choice =="B":
108 del Info[show_list[selection-1]]
109 Save_Info(Info)
110 print("\033[1;31;0m""Delete successfully!""\033[0m")
111 main()
112 elif choice == "S":
113 print("------------------------------",show_list[selection-1],"------------------------------")
114 for a,b in enumerate(Info[show_list[selection-1]]):
115 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
116 print("----------------------------------------------------------------------------")
117 choiceS = input("Select what to delete Server:")
118 while JudeS(choiceS,a):
119 choiceS = input("\033[1;31;0m""Please enter the correct number:""\033[0m")
120 choiceS = int(choiceS)
121 Info[show_list[selection-1]].pop(choiceS-1)
122 Save_Info(Info)
123 print("\033[1;31;0m""Delete successfully!""\033[0m")
124 main()
125 #----------------------------------------------increase---------------------------------
126 def Add():
127 print("-->Please enter details.<--")
128 backend = input("Backend Name:")
129 server = input("Server Name:")
130 weight = input("weight(weight): ")
131 maxconn = input("Maximum number of links(maxconn):")
132 while JudeA(backend,weight,maxconn):
133 print("\033[1;31;0m""Input information error, please re-enter!!!""\033[0m")
134 Add()
135 if backend not in Info:
136 Info[backend] = [{"server":server,"weight":weight,"maxconn":maxconn}]
137 print(">>>>>Successful new construction")
138 else:
139 flag = 1
140 for ser in Info[backend]:
141 if server == ser["server"]:
142 flag = 0
143 ser["weight"] = weight
144 ser["maxconn"] = maxconn
145 print(">>>>>backend and server Information already exists.""\033[1;31;0m""server Information has been modified""\033[0m")
146 if flag:
147 Info[backend].append({"server":server,"weight":weight,"maxconn":maxconn})
148 print(">>>>>backend It already exists.""\033[1;31;0m""server Added Successfully""\033[0m")
149 Save_Info(Info)
150 main()
151 #----------------------------------------------modify---------------------------------
152 def Modify(show_list):
153 selection = input("modify backend(B) or server(S)?>")
154 while (selection not in ("B","S")):
155 selection = input("\033[1;31;0m""Please enter the correct answer.:""\033[0m")
156 choice = input("Please enter what you want to modify. backend number:")
157 while Jude(choice,show_list):
158 choice = input("\033[1;31;0m""Please enter the correct number.:""\033[0m")
159 choice = int(choice)
160 if selection == "B":
161 backend = input("modify backend The name is:")
162 while not backend.startswith("www"):
163 backend = input("\033[1;31;0m""Please enter legitimate backend Name:""\033[0m")
164 temp = Info[show_list[choice-1]]
165 del Info[show_list[choice-1]]
166 Info[backend] = temp
167 Save_Info(Info)
168 print("\033[1;31;0m""modify backend Success""\033[0m")
169 main()
170 else:
171 print("------------------------------",show_list[choice-1],"------------------------------")
172 for a,b in enumerate(Info[show_list[choice-1]]):
173 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
174 print("----------------------------------------------------------------------------")
175 selection = input("Which to modify? server？>")
176 while JudeS(selection,a):
177 selection = input("\033[1;31;0m""Please enter the correct one. server number:""\033[0m")
178 selection = int(selection)
179 sername = input("modify server For:")
180 Info[show_list[choice-1]][a-1]["server"] = sername
181 Save_Info(Info)
182 print("\033[1;31;0m""modify server Success""\033[0m")
183 main()
184 #----------------------------------------------Instruction Processing------------------------------
185 def Deal_order(order,show_list):
186 if order =="Q": #Sign out
187 pass
188 elif order =="A" : #Newly build
189 Add()
190 elif order == "D": #delete
191 Delete(show_list)
192 elif order == "M": #modify
193 Modify(show_list)
194 elif order == "C":
195 Check(show_list)
196 else:
197 order = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
198 Deal_order(order,show_list)
199 #----------------------------------------------Principal function--------------------------------
200 def main():
201 order,show_list = Show(Info)
202 Deal_order(order,show_list)
203 if __name__=="__main__":
204 Info = Deal_file()
205 main()

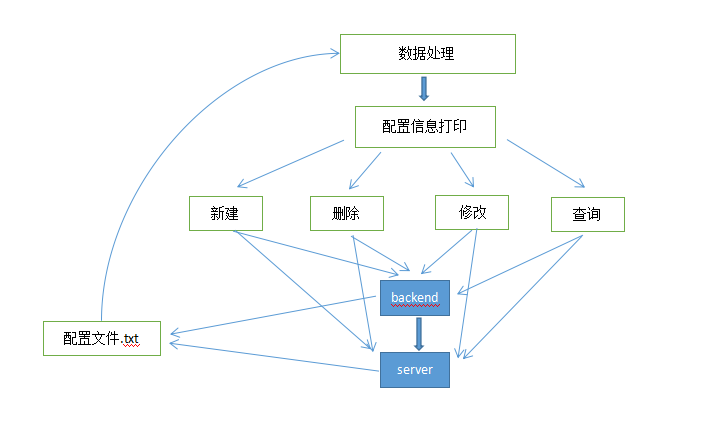

<5> Processing flow:
The main functions of <6> are introduced.
Deal_file(): Read the configuration file, intercept the operation data, find the interception position through String.startswith() to get the data, and return to the dictionary form.
1 def Deal_file():
2 s = ""
3 Info = {}
4 with open("configuration file.txt","r") as f:
5 for i in f:
6 if i.startswith("backend"):
7 backend = i.strip().split(" ")[1]
8 Info[backend] = []
9 elif i.strip().startswith("server"):
10 server = i.strip().split(" ")[1]
11 weight = i.strip().split(" ")[3]
12 maxconn = i.strip().split(" ")[5]
13 Server = {"server":server,"weight":weight,"maxconn":maxconn}
14 Info[backend].append(Server)
15 else:
16 continue
17 return Info
2.Save_Info(): Save the data after operation and the original irrelevant data, and receive the dictionary as a parameter.
1 def Save_Info(Info):
2 s = ""
3 with open("configuration file.txt","r") as f:
4 for i in f:
5 if not i.startswith("backend"):
6 s = s + i
7 else:
8 break
9 s1 = ""
10 for backend in Info:
11 s2 = "backend " + backend
12 s1 = s1 + s2 + "\n"
13 for di in Info[backend]:
14 server = di["server"]
15 weight = di["weight"]
16 maxconn = di["maxconn"]
17 s3 = " server {} weight {} maxconn {}".format(server,weight,maxconn)
18 s1 = s1 + s3 + "\n"
19 S = s + s1
20 with open("configuration file.txt","w+") as F:
21 F.write(S)
22 return(S)
3.Show (): The data to be operated is printed out to prompt the input operation instructions, the white list judges the input instructions, makes the judgement, and returns the input instructions and the print list.

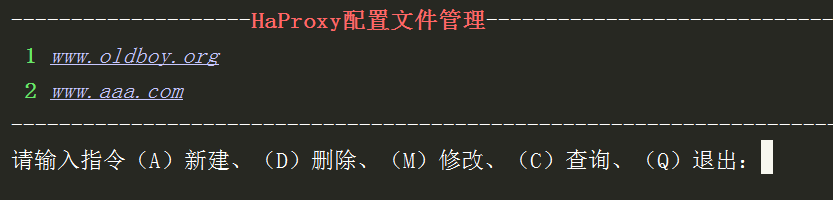

Effect:
1 def Show(Info):
2 show_list = []
3 print("--------------------""\033[1;31;0m""HaProxy Configuration file management""\033[0m""-------------------------------")
4 for i,n in enumerate(Info):
5 show_list.append(n)
6 print("\033[1;32;0m",i+1,n,"\033[0m")
7 print("------------------------------------------------------------------------")
8 order = input("Please enter instructions( A)New construction,.( D)Delete,( M)Amendment( C)Queries,( Q)Sign out:")
9 while order not in ("A","D","M","C","Q"):
10 order = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
11 show_list = list(show_list)
12 return order,show_list
4.Jude (), JudeA () and JudeS () respectively make simple judgments on the input backend number, server number and new data information.
1 #----------------------------------------------Backend Number Input Judgment-------------------
2 def Jude(choice,show_list):
3 try:
4 if eval(choice) not in range(len(show_list)+1):
5 return True
6 else:return False
7 except:
8 return True
9 #----------------------------------------------Server Number Judgment-----------------------
10 def JudeS(choiceS,a):
11 try:
12 if int(choiceS) in range(1,a+1) or int(choiceS) == 1:
13 return False
14 else:
15 return True
16 except:
17 return True
18 #----------------------------------------------Additional Information Judgment--------------------------
19 def JudeA(backend,weight,maxconn):
20 try:
21 if backend.startswith("www") and int(weight) in range(50) and int(maxconn) in range(5000):
22 return False
23 except:
24 return True
5.Deal_order (): Accepts the return value from Show (), and shunts the input instructions to different functions.
1 def Deal_order(order,show_list):
2 if order =="Q": #Sign out
3 pass
4 elif order =="A" : #Newly build
5 Add()
6 elif order == "D": #delete
7 Delete(show_list)
8 elif order == "M": #modify
9 Modify(show_list)
10 elif order == "C":
11 Check(show_list)
12 else:
13 order = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
14 Deal_order(order,show_list)

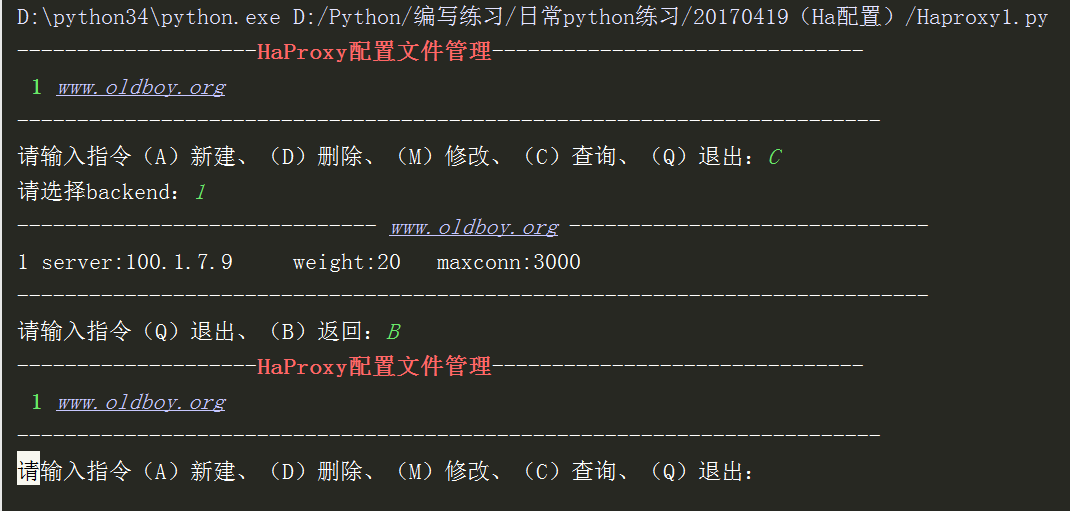

6.Check (): Query, mainly look at the server information under backend.
Effect:
1 #----------------------------------------------query---------------------------------
2 def Check(show_list):
3 choice = input("Please choose backend: ")
4 while Jude(choice,show_list):
5 choice = input("\033[1;31;0m""Input error, please re-enter:""\033[0m")
6 choice = int(choice)
7 print("------------------------------",show_list[choice-1],"------------------------------")
8 for a,b in enumerate(Info[show_list[choice-1]]):
9 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
10 print("----------------------------------------------------------------------------")
11 select = input("Please enter instructions( Q)Withdrawal,( B)Return:")
12 while select not in ("Q","B"):
13 select = input("\033[1;31;0m""Please enter the correct instruction:""\033[0m")
14 if select == "Q":
15 pass
16 elif select == "B":
17 main()

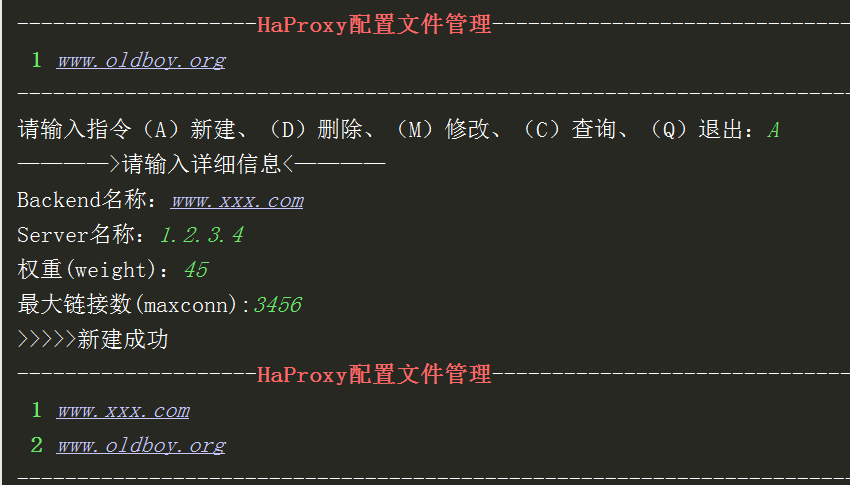

7.Add (): New, you can create a new backend, if it already exists, you can create a new server information under the backend, and if both exist, you can modify the server information.
1 #----------------------------------------------increase---------------------------------
2 def Add():
3 print("-->Please enter details.<--")
4 backend = input("Backend Name:")
5 server = input("Server Name:")
6 weight = input("weight(weight): ")
7 maxconn = input("Maximum number of links(maxconn):")
8 while JudeA(backend,weight,maxconn):
9 print("\033[1;31;0m""Input information error, please re-enter!!!""\033[0m")
10 Add()
11 if backend not in Info:
12 Info[backend] = [{"server":server,"weight":weight,"maxconn":maxconn}]
13 print(">>>>>Successful new construction")
14 else:
15 flag = 1
16 for ser in Info[backend]:
17 if server == ser["server"]:
18 flag = 0
19 ser["weight"] = weight
20 ser["maxconn"] = maxconn
21 print(">>>>>backend and server Information already exists.""\033[1;31;0m""server Information has been modified""\033[0m")
22 if flag:
23 Info[backend].append({"server":server,"weight":weight,"maxconn":maxconn})
24 print(">>>>>backend It already exists.""\033[1;31;0m""server Added Successfully""\033[0m")
25 Save_Info(Info)
26 main()

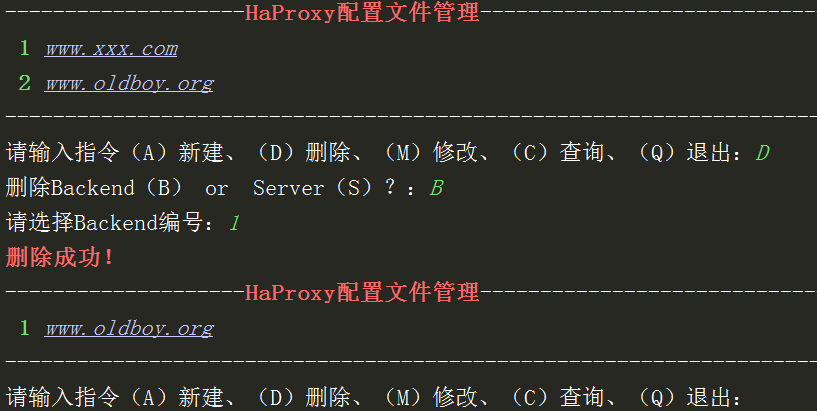

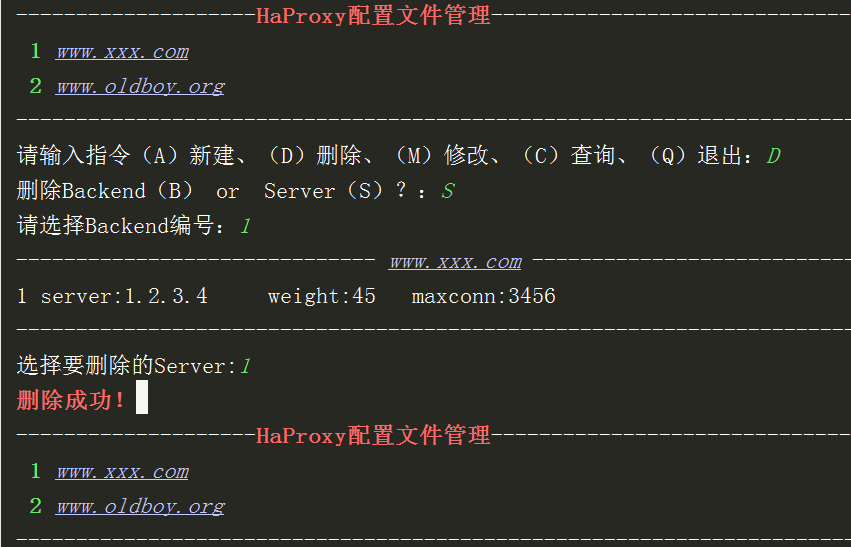

8.Delete (): Delete, you can delete backend or Server information.
Effect:
1 #----------------------------------------------delete---------------------------------
2 def Delete(show_list):
3 choice = input("delete Backend(B) or Server(S)？: ")
4 while(choice not in ("B","S")):
5 choice = input("\033[1;31;0m""Please enter the correct instruction:""\033[0m")
6 selection = input("Please choose Backend No.")
7 while Jude(selection,show_list):
8 selection = input("\033[1;31;0m""Please enter the correct number:""\033[0m")
9 selection = int(selection)
10 if choice =="B":
11 del Info[show_list[selection-1]]
12 Save_Info(Info)
13 print("\033[1;31;0m""Delete successfully!""\033[0m")
14 main()
15 elif choice == "S":
16 print("------------------------------",show_list[selection-1],"------------------------------")
17 for a,b in enumerate(Info[show_list[selection-1]]):
18 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
19 print("----------------------------------------------------------------------------")
20 choiceS = input("Select what to delete Server:")
21 while JudeS(choiceS,a):
22 choiceS = input("\033[1;31;0m""Please enter the correct number:""\033[0m")
23 choiceS = int(choiceS)
24 Info[show_list[selection-1]].pop(choiceS-1)
25 Save_Info(Info)
26 print("\033[1;31;0m""Delete successfully!""\033[0m")
27 main()

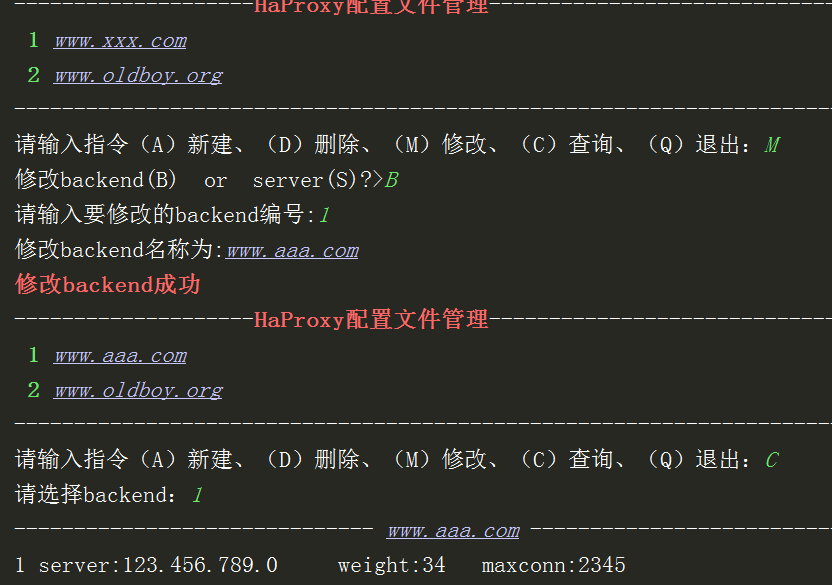

9.Modify (): Modify, modify backend or Server information.
Effect:
1 def Modify(show_list):
2 selection = input("modify backend(B) or server(S)?>")
3 while (selection not in ("B","S")):
4 selection = input("\033[1;31;0m""Please enter the correct answer.:""\033[0m")
5 choice = input("Please enter what you want to modify. backend number:")
6 while Jude(choice,show_list):
7 choice = input("\033[1;31;0m""Please enter the correct number.:""\033[0m")
8 choice = int(choice)
9 if selection == "B":
10 backend = input("modify backend The name is:")
11 while not backend.startswith("www"):
12 backend = input("\033[1;31;0m""Please enter legitimate backend Name:""\033[0m")
13 temp = Info[show_list[choice-1]]
14 del Info[show_list[choice-1]]
15 Info[backend] = temp
16 Save_Info(Info)
17 print("\033[1;31;0m""modify backend Success""\033[0m")
18 main()
19 else:
20 print("------------------------------",show_list[choice-1],"------------------------------")
21 for a,b in enumerate(Info[show_list[choice-1]]):
22 print("{} server:{} weight:{} maxconn:{}".format(a+1,b["server"],b["weight"],b["maxconn"]))
23 print("----------------------------------------------------------------------------")
24 selection = input("Which to modify? server？>")
25 while JudeS(selection,a):
26 selection = input("\033[1;31;0m""Please enter the correct one. server number:""\033[0m")
27 selection = int(selection)
28 sername = input("modify server For:")
29 Info[show_list[choice-1]][a-1]["server"] = sername
30 Save_Info(Info)
31 print("\033[1;31;0m""modify server Success""\033[0m")
32 main()
